RPA Application Activities¶

Break¶

Break activity is used to terminate loop and continue execution after the loop.

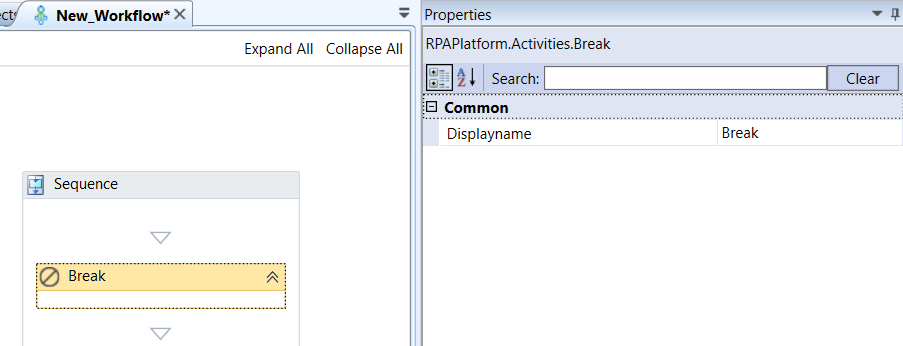

Break activity and properties

Properties of Break.

Business Rule Exception¶

Business Rule Exception activity allows you to throw an business rule exception when the workflow fails due to missing, incomplete or invalid data.

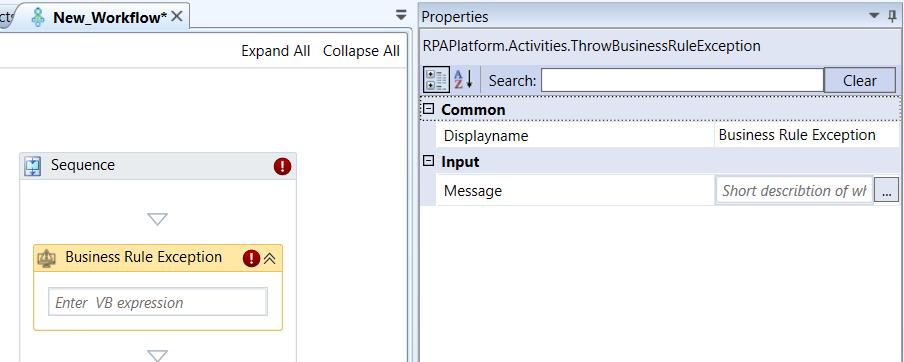

Business Rule Exception activity and properties

Properties of Business Rule Exception.

Do While¶

Do-While activity creates a loop that executes other activities dropped in it at least once and repeatedly until the looping condition no longer evaluates to True.

Do While activity and properties

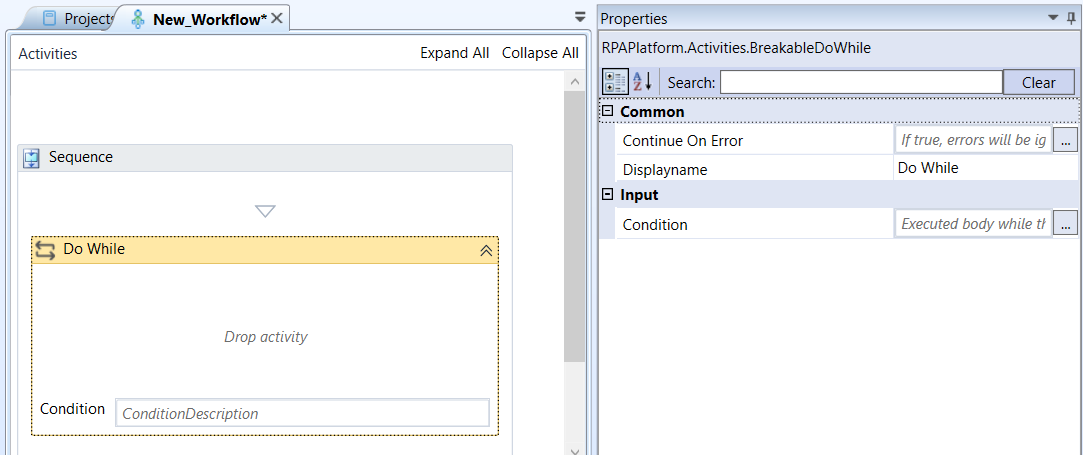

Properties of Do While.

While¶

While activity creates a loop that executes other activities dropped in it while the condition is False. If the condition is True, the loop ceases and moves to the next activity. It is different from the Do While activity which first checks whether the condition evaluates to True before the looping begins.

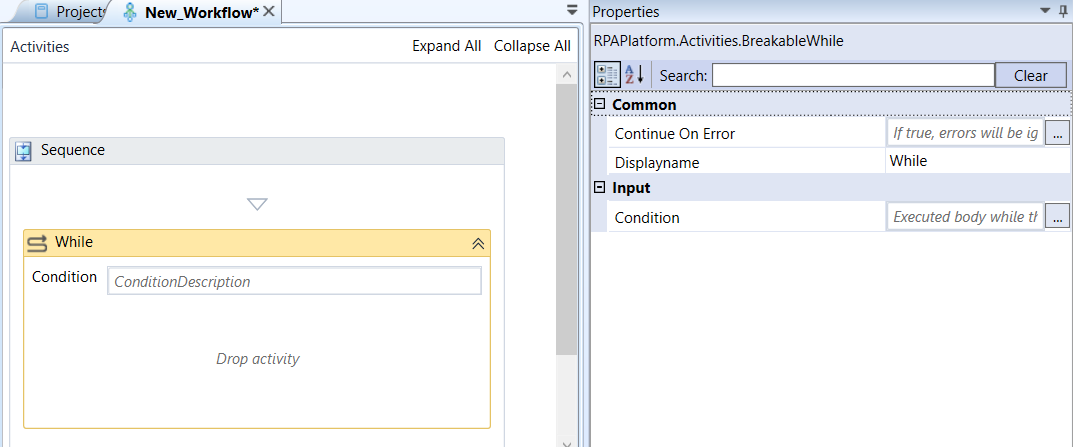

While activity and Properties

Properties of While.

Click Element¶

Click on an Element found with GetElement.

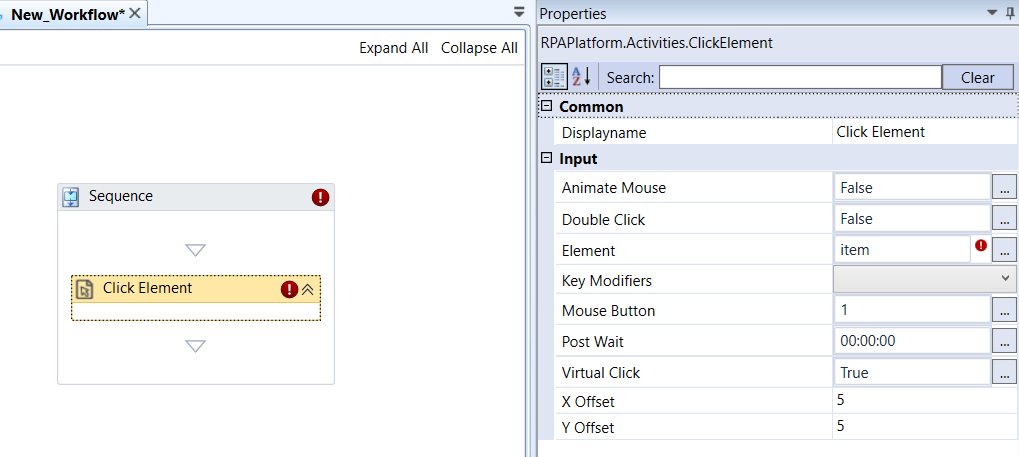

Click Element activity and properties

Properties of Click Element.

Properties	Description
DisplayName	Title of the activity inside the sequence.
Animate Mouse	If set to True, the cursor will appear changing its position throughout execution. It only works on Physical Clicks. (Boolean)
Double Click	If set to True, the cursor clicks twice inside the window. (Boolean)
Element	The application selected with the Get Element activity.
Key Modifiers	If set, the corresponding keys act as if pressed during execution.
Mouse Button	Set to "1" if the Left Mouse button is to be clicked; "2" if the Middle Mouse button is to be clicked; "3" if the Right Mouse button is to be clicked.
Post Wait	Time RPA Bot should wait for this activity to finish after completing its execution.
Virtual Click	Set by default as True. RPA Bot tries to do a Virtual Click instead of clicking with the mouse. Visit Appendix B - Virtual Clicking for more information. (Boolean). - A virtual click is different from a physical click in that it simulates a mouse event by using User32.dll. There are several reasons to do this but the main ones are: that it consumes fewer resources and provides a faster way of clicking an element.
X Offset	The horizontal offset inside the window that is to be clicked. Units are in pixels. It also allows for negative values. Only works on Physical Click.
Y Offset	The vertical offset inside the window that is to be clicked. Units are in pixels. It also allows for negative values. Only works on Physical click.

Close Application¶

Closes a given application selected with the Get Element activity.

Close Application activity and properties

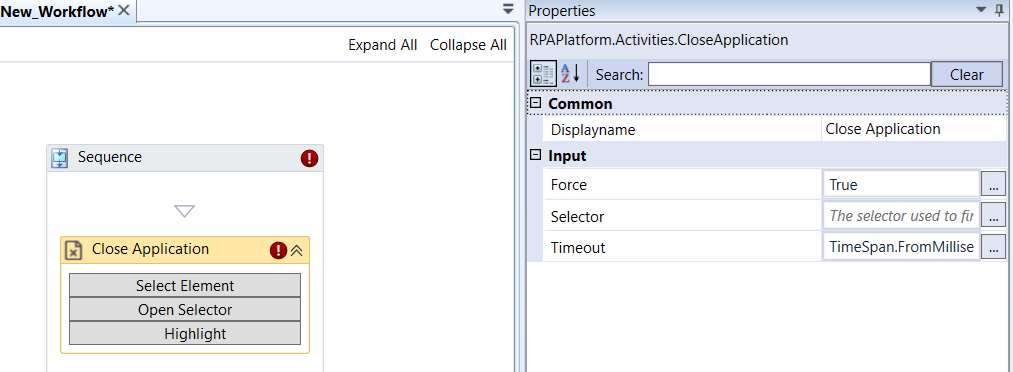

Properties of Close Application.

In the Close Application activity, click the corresponding features in the activity for configuring the details.

• Click Select Element, to select an element.

• Click Open Selector to manipulate the HTML content of any of the window that is opened.

• Click Highlight for highlighting. Clicking Highlight will red-highlight the first Element that matches the criteria on the selector. Useful for checking if the selector is properly set up.

Comment¶

Comments are provided using XML documentation comments. In the workspace, click the activity area and enter your comments in the activity directly.

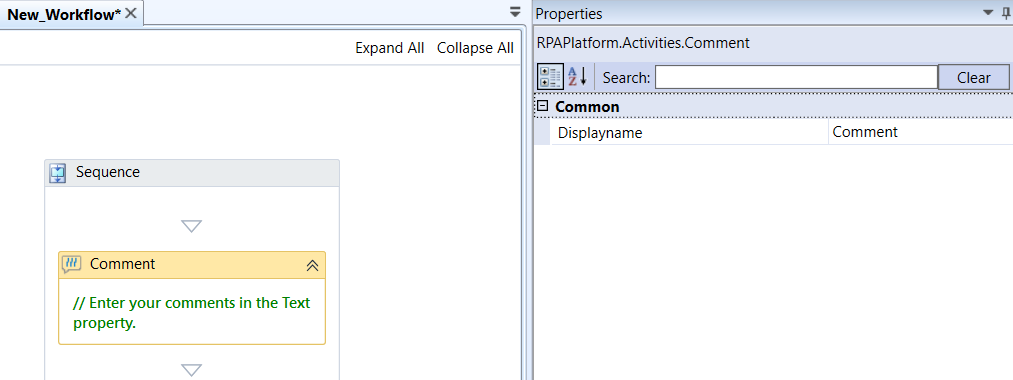

Comment activity and properties

Properties of Comment.

Comment Out¶

Every activity inside Comment Out is ignored by the execution of the workflow. This activity is useful for remarking something out of the sequence. If more than one activity is dropped inside comment, it appears within a sequence.

Comment Out activity and properties

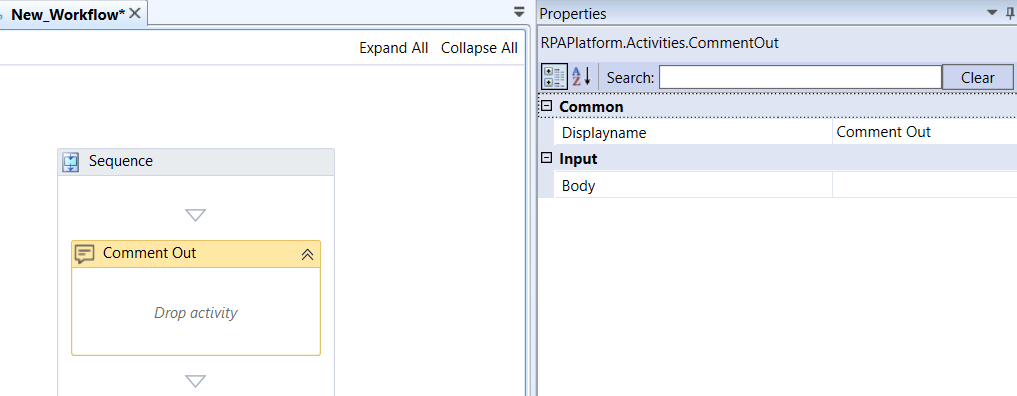

Properties of Comment Out.

Continue¶

The continue keyword is used to end the current iteration in a loop, and continues to the next iteration.

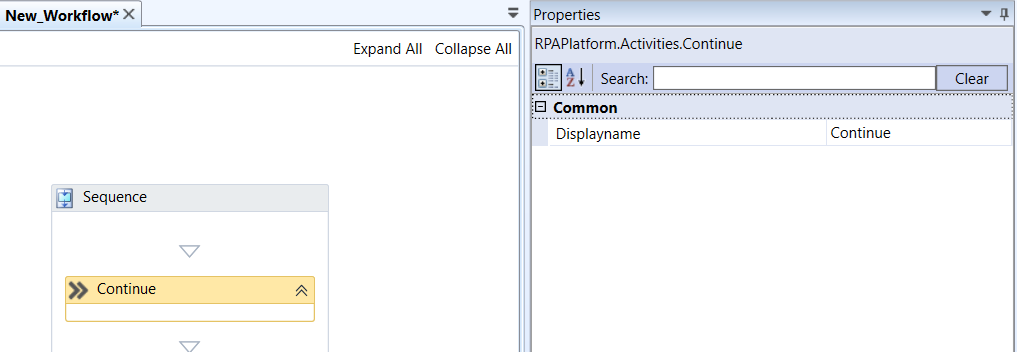

Continue activity and properties

Properties of Continue.

Copy Clipboard¶

Copy Clipboard activity copies or saves the content from the Windows clipboard into a variable.

Repetitive sequential usage of this activity, however, is not recommended, as it is unreliable due to buffer issues. As a suggestion/workaround, one can use the Invoke Code Activity and run the following AHK code variable1:= Clipboard. Notice that variable1 is the name of the variable.

If the content of the Windows clipboard that will be copied is a String the user has to specify the variable inside the String Result field in the Properties Box. If it is an image the user has to specify the BitmapSource variable file path the image will be saved inside Image Result.

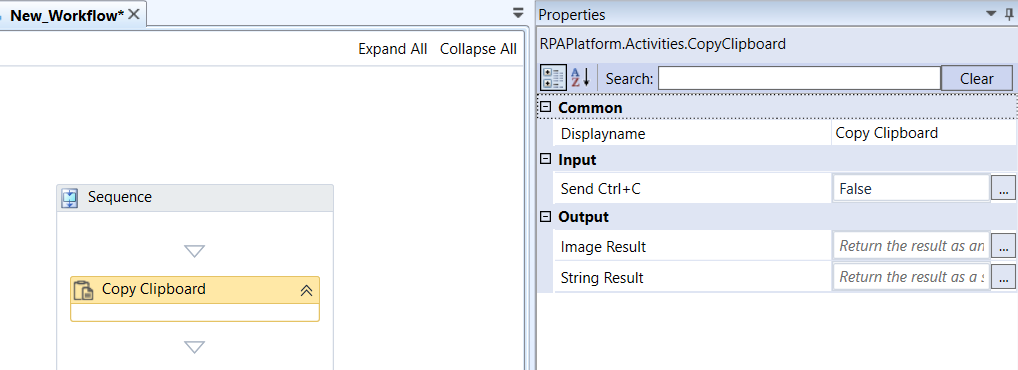

Copy Clipboard activity and properties

Properties of Copy Clipboard.

Detector¶

Detector turns workflow into idle mode, waiting on selected Detector to trigger. Detectors can also be used to trigger StateMachines.

Detector activity and properties

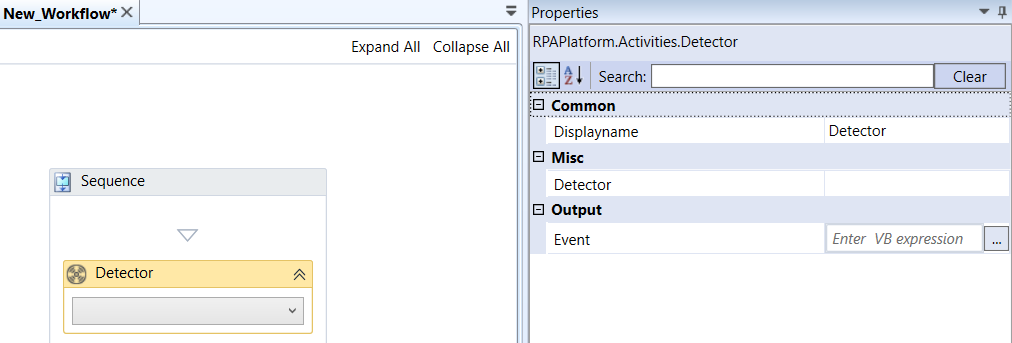

Properties of Detector.

Focus Element¶

Focus Element activity should be placed under Get Element activity. Thi is used to focus and highlight an item during the runtime.

Focus Element activity and properties

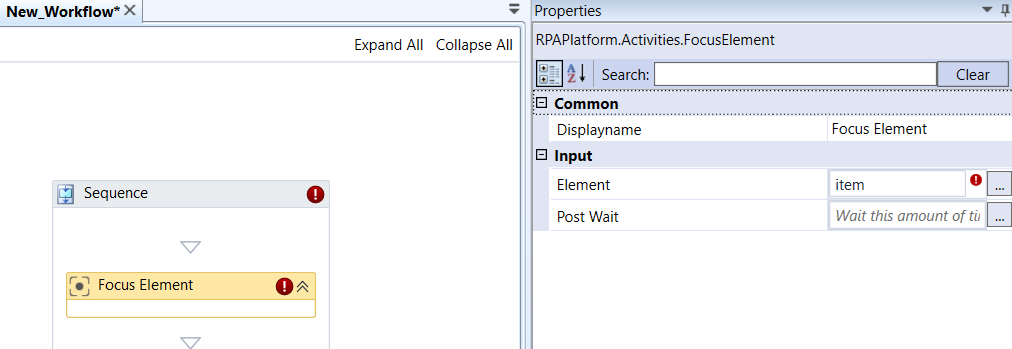

Properties of Focus Element

Properties	Description
DisplayName	Title of the activity inside the sequence.
Element	The item within the Get element that is to be focused.
PostWait	Wait for this time before focusing the element. Time should be entered in hhss.

Foreach DataRow¶

Foreach DataRow activity enumerates through each row inside a DataTable.This activity iterates through a DataTable or DataView. All the activities inside Foreach DataRow will be looped over each row.

Foreach DataRow activity and properties

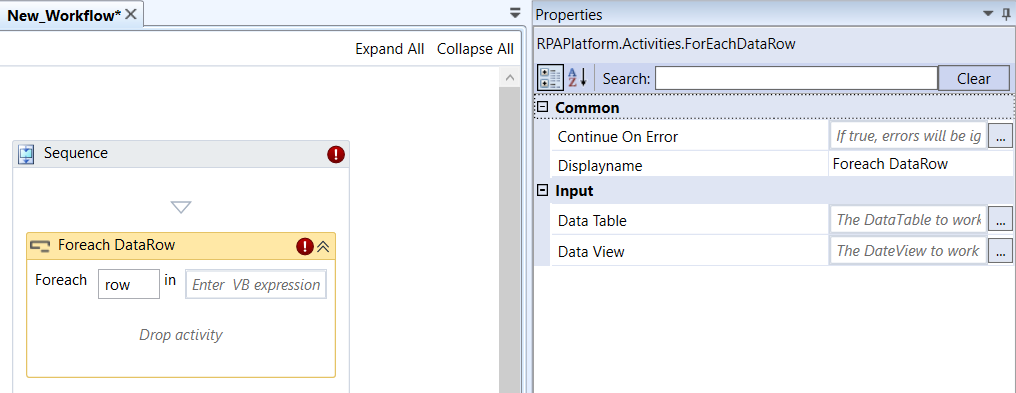

Properties of Foreach DataRow.

• DataView represents a databindable, customized view of a DataTable for sorting, filtering, searching, editing and navigation. It also does not store data, but instead represents a connected view of its corresponding DataTable. Changes made to the DataView’s data will affect the DataTAble. Changes to the DataTable’s data will affect all DataViews associated with it.

Highlight Element¶

Highlight Element activity highlights an Element found with GetElement activities.

You can define a specific Element to be highlighted when using this activity outside of a GetElement Activity. Besides that, it allows you to specify the duration of the highlighting by inserting a TimeSpan object in the format hhss inside the Duration parameter, such as 00:00:30 to highlight this given element for 30 seconds. It also allows for blocking the execution of the Workflow until the highlighting has finished by setting the Blocking parameter to True.

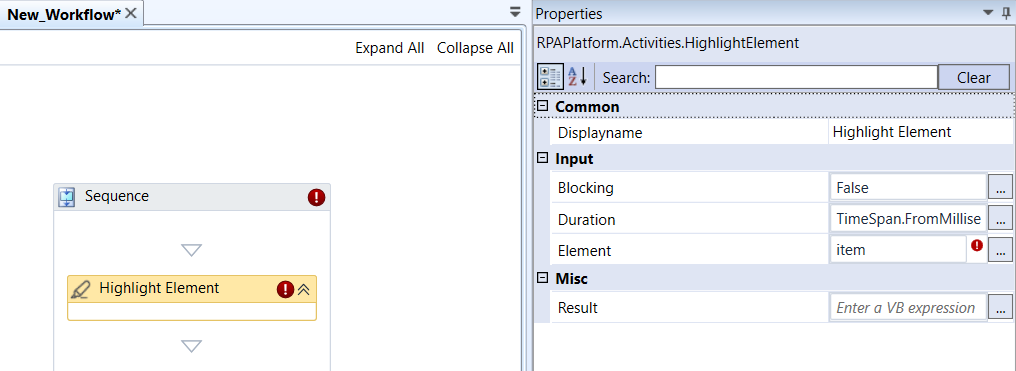

Highlight Element activities and properties

Properties of Highlight Element

Insert Clipboard¶

Copies the content of parameter Text into the Windows clipboard buffer which can be pasted. Repetitive sequential usage of this activity, however, is not recommended, as it is unreliable due to buffer issues.

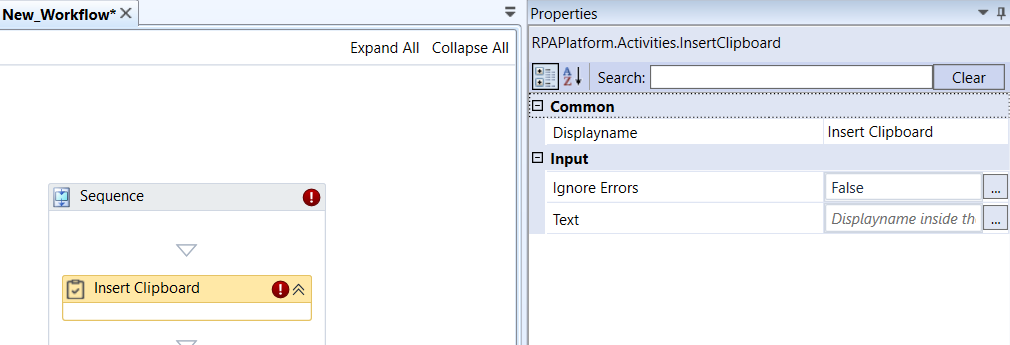

Insert Clipboard activity and properties

Properties of Insert Clipboard

Invoke Bot Workflow¶

Invoke Bot Workflow allows the user to invoke Workflows.

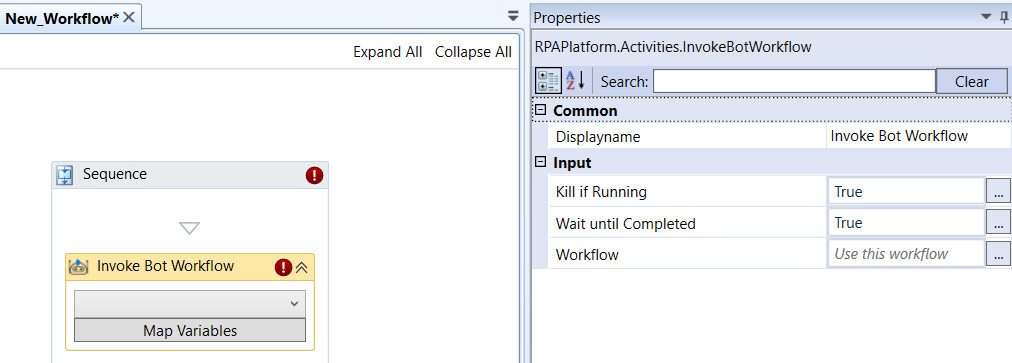

Invoke Bot Workflow activity and properties

Properties of Invoke Bot Workflow

Properties	Description
DisplayName	Title of the activity inside the sequence.
Kill if running	If you enter True , it kills the process if running. If you enter False , it will not kill the process.
Wait until completed	If set to True , RPA Bot Studio waits until the Workflow invoke call is finished - either success or error. If successful, the message containing the data is returned to the robot. If set to False , however, RPA Bot Studio will no longer have access to the returned message - communication will be one-way. Therefore, all logic that would otherwise depend on it must then be redesigned. Think of it as a try/catch exception block that does not return any exception message.
Workflow	The workflow that is to be invoked. In the activity, click “˅” to select the workflow.

In the activity, click the corresponding features in the activity for configuring.

• Click Map Variables to map the variables.

• The Workflow is invoked by the user currently logged in RPA Bot Studio. It means that the user must have access to the desired Workflow which is to be invoked, otherwise it won’t even be displayed in the Workflows dropdown.

Log Message¶

Log message allows you to log specified diagnostic message at different severity level so that it help to monitor and debug workflows. These messages are also sent to platform management and displayed in the Logs.

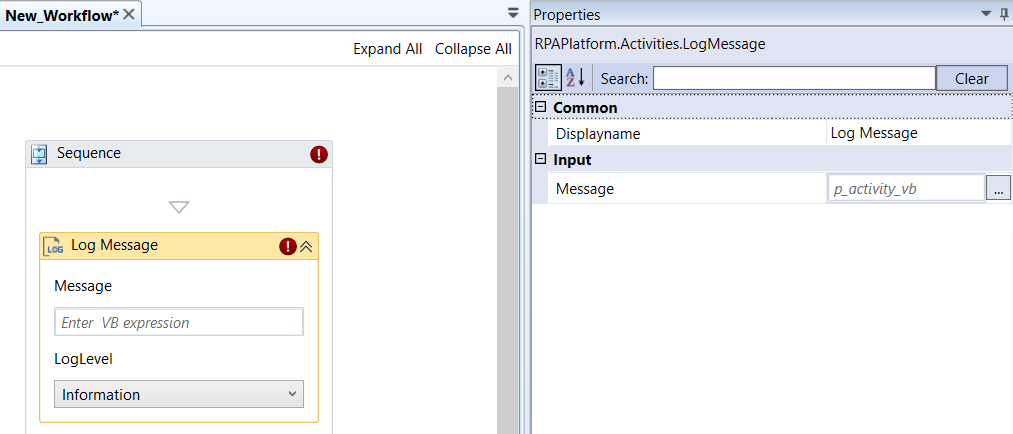

Log Message activity and properties

Properties of Log Message

Properties	Description
DisplayName	Title of the activity inside the sequence.
Message	The message you want to log. Depending on the option selected from the Log Level drop-down list, the message is displayed only at that severity level.
Log Level	The severity level of the message to be logged. Select a log level. The log level refers to how detailed the generated message should be. You can configure it via the Log Level  setting in Assistant . By default, it is set to Information. Trace - These logs contain the most detailed information used for debugging or tracking specific task execution paths within the system. It all logs with the Trace, Information, Warning, Error, and Critical levels. Information - These logs provide general insights about the automation execution, such as start and end of tasks. It displays all logs with the Information, Warning, Error, and Critical levels. Warning - These logs include minor issues or potential problems that do not immediately affect the current operation but might become significant at later point of time. It displays all logs with the Warning, Error, and Critical levels. Error – These logs include details of errors that have occurred during execution, which prevent normal workflow execution but do not halt the entire system. It displays all logs with the Error and Critical levels.

Maximize Window¶

Maximize window allows the user to maximize the current window.

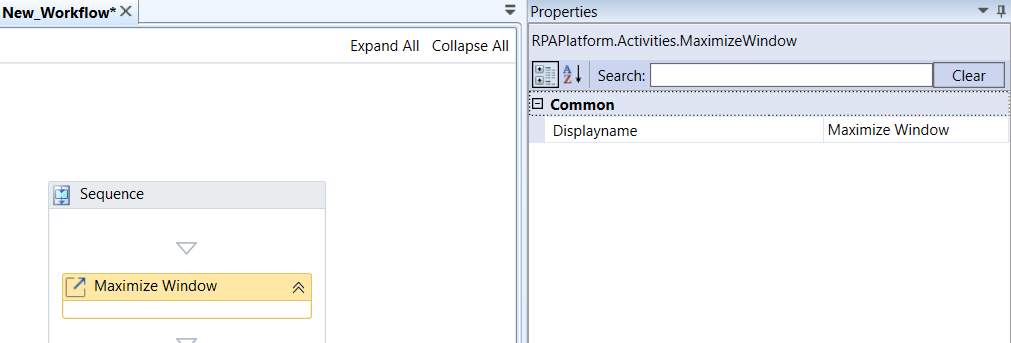

Maximize window activity and properties

Properties of Maximize window

Move Mouse¶

Move mouse cursor to a location relative to an element found with GetElement (or desktop if no element is supplied).

This Activity has two modes of usage.

The first mode of usage is Selector-less. In this mode, the Activity will use the absolute values of the screen to find the X and Y offset values. As an example, if the user has a 1366x768 display, the activity will move the mouse according to that resolution inside the screen. To use this mode, all the user needs to do is to delete any value inside the Element property of the activity - its default value is item - and you can define the X and Y offset values.

The second mode of usage is Selector-bound. In this mode, after selecting a Windows element, the activity will use the relative values of the part of the screen which the element occupies to find the X and Y offset values. To use this mode, all the user needs to do is drag the Move Mouse activity into the element selected and define the X and Y offset values.

The application must be selected by using the Get Element Activity.

Mouse Move activity and properties

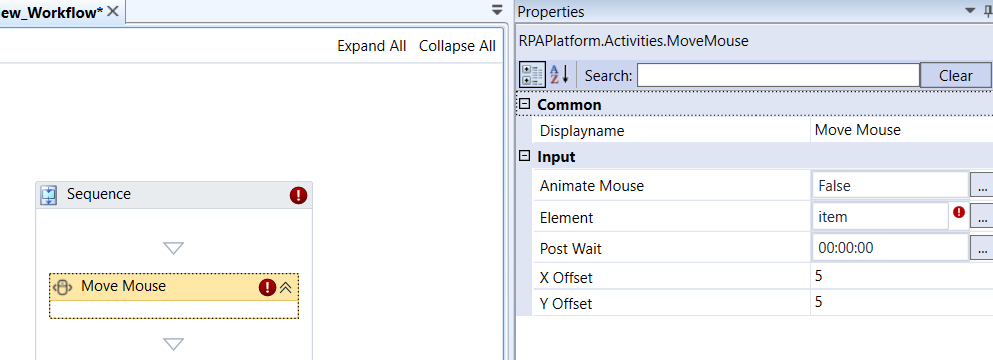

Properties of Mouse Move

• This activity requires a Mouse IO. If it fails to find one, it will return the error: Could not send mouse input. Error Code: 5. This may happen if RPA Bot client is launched from inside a Windows Remote Desktop and the session is disconnected. To avoid this, please use HDRobots extension, do not disconnect/close the RDP session or make the session persistent by using other techniques (i.e.: running a VNC server).

Mouse Scroll¶

Mouse Scroll activity allows you to scroll the page or element using the pixel value or the XPath.

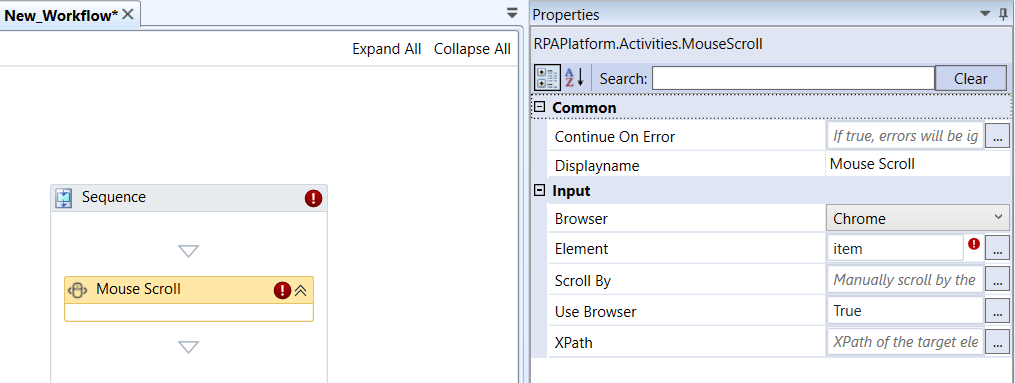

Mouse Scroll activity and properties

Properties of Mouse Scroll

Properties	Description
Continue On Error	Enter True if you need to ignore the errors and continue the workflow. Else enter False . This field accepts only Boolean values (True or False)
DisplayName	Title of the activity inside the sequence.
Browser	Select the required Browser name.
Element	Target desktop element to scroll into view.
Scroll By	Enter the pixel number. This allows you to manually scroll by the specified pixels.
Use Browser	Select if you want to apply mouse scroll to the browser or not True: Mouse scroll applies to the selected browser. False: Mouse scroll will not get applied to any browser.
XPath	XPath of the target element to scroll into view within the browser.

Multiple Assign¶

Multiple Assign allows the user to assign multiple variables to single activity, enabling you to assign values to multiple variables.

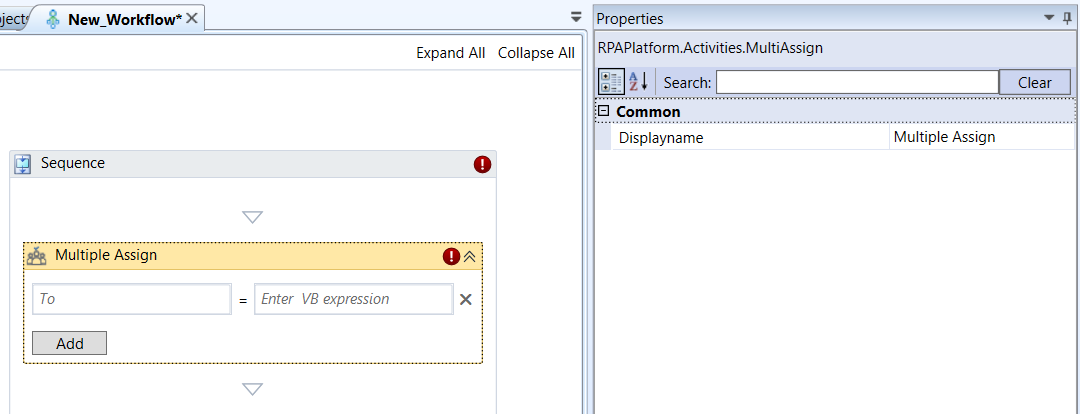

Multiple Assign activity and properties

Properties of Multiple Assign.

Open Application¶

Open Application searches for Windows element based on a Selector, and focus on it. If the Application was not found, it will start the application.

Clicking Highlight will red-highlight the first element that matches the criteria on the Selector. Useful for checking if the Selector is properly set up.

This Activity also supports working with Selector inside itself. All you need to do is drag a GetElement, or according activity, inside its sequence.

This activity can also be used to work with browsers and other applications such as Java, SAP etc.

Open Application activity and properties

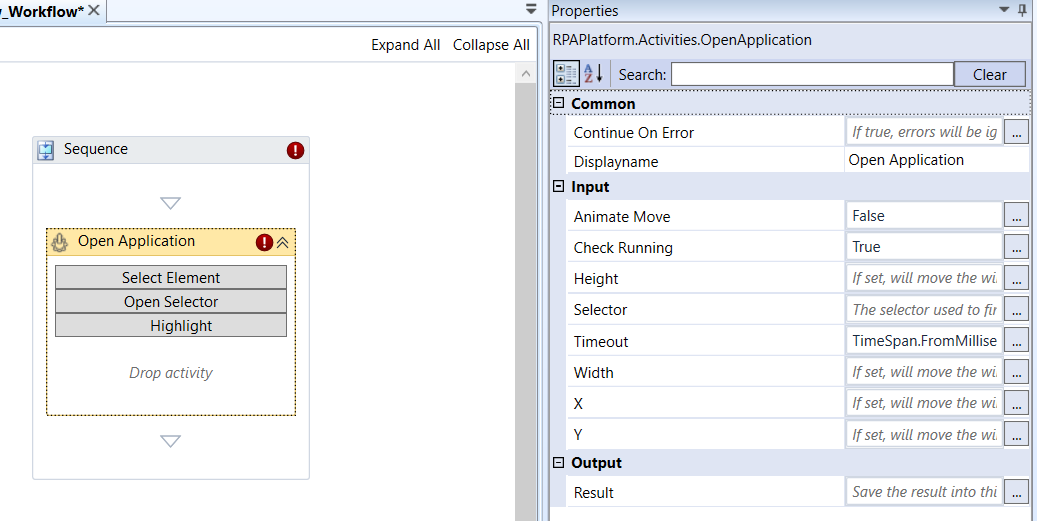

Properties of Open Application

In the Open Application activity, click the corresponding features in the activity for configuring.

• Click Select Element, to select an element.

• Click Open Selector to manipulate the HTML content of any of the window that is opened.

• Click Highlight for highlighting. Clicking Highlight will red-highlight the first Element that matches the criteria on the selector. Useful for checking if the selector is properly set up.

Show Balloon Tip¶

Show Balloon Tip shows a message similar to the Show Notification activity near the system tray. It differs from Show Notification only for the fact that it also contains a title and allows for other types of notifications such as Error or Warning.

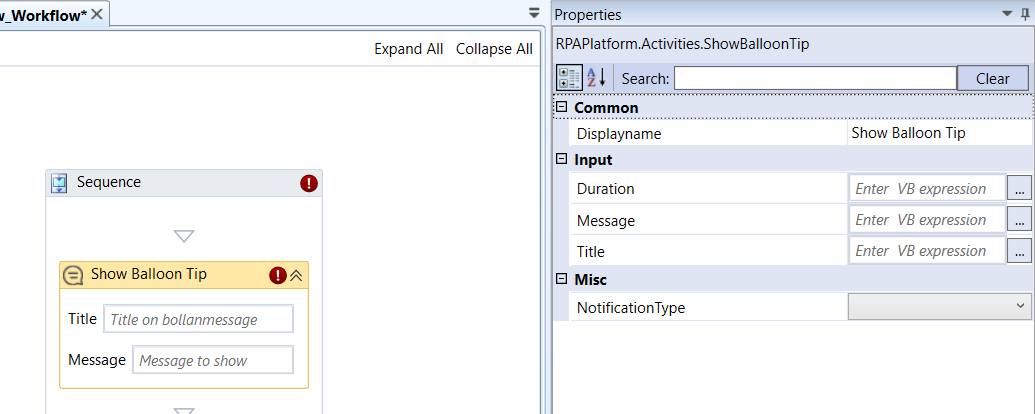

Show Balloon Tip activity and properties

Properties of Show Balloon Tip

• Refrain from using too many activities that change UI elements (such as Show Balloon Tip, WriteLine or Show Notification). These activities run single-threaded, which means that each time they are executed, they briefly stop Workflow execution.

Stop Bot Workflow¶

Stops the execution of automation that is that is invoked through Invoke Bot Workflow.

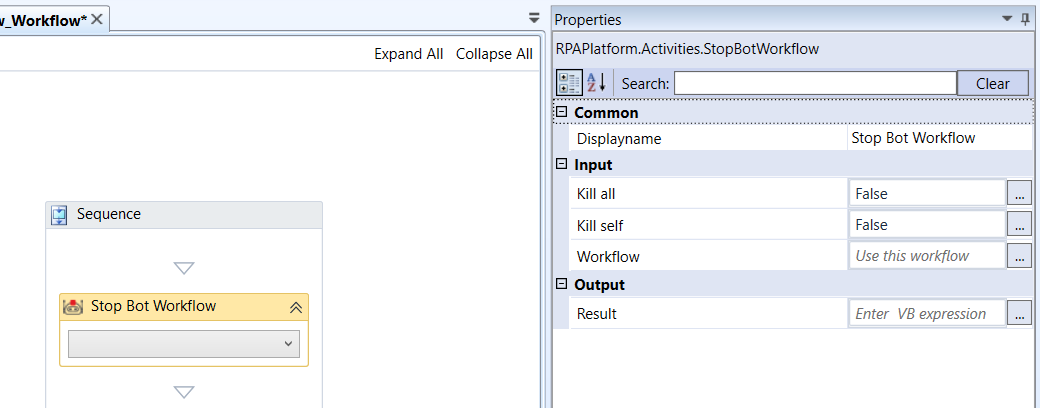

Stop Bot Workflow activity and properties

Properties of Stop Bot Workflow

Properties	Description
DisplayName	Title of the activity inside the sequence.
Kill All	If True, aborts the workflow that is invoked.
Kill Self	If True, kills the workflow by itself after execution.
Workflow	The path of the selected workflow. In the activity, click “˅” to select the workflow.
Result	Enter an integer variable to hold the result of the workflow.

Type Text¶

Type Text sends keystrokes from the text contained inside Hint to the window currently focused. Instead of memorizing every keystroke, it is recommended to use the Recorder as it will map every keystroke automatically.

The key stroke syntax should be { {Modifier1, Key1} {Modifier2, Key2} {…} {ModifierN, KeyN} }.Keep in mind that Modifiers, which would be auxiliary keys - such as Ctrl, Alt, Shift - are not obligatory.

The user can also send variables or hardcoded text, such as sending { {Modifier1, Key1} SOME TEXT " + desired_variable + "{Enter} }.

• The user is strongly discouraged from using this activity. It is preferable to select an element with the GetElement activity and use the Assign property to assign a string value to it.

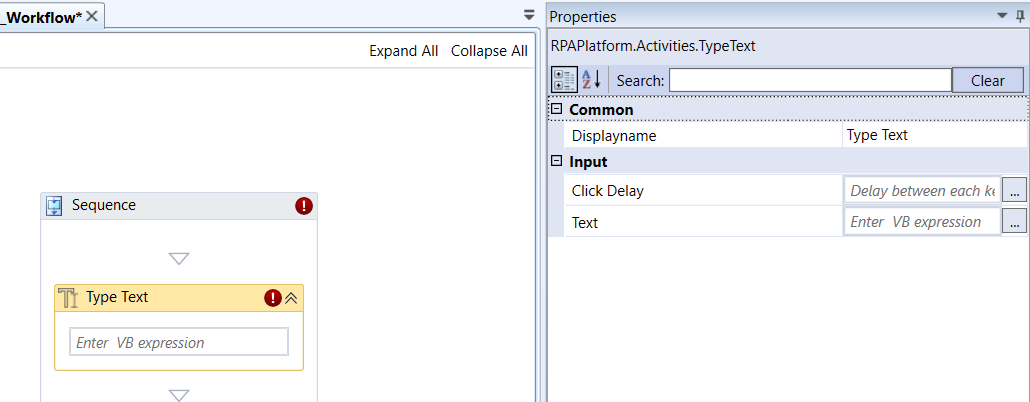

Type Text activity and properties

Properties of the Type Text.

• This activity requires a Keyboard IO. If it fails to find one, it will return “Could not send keyboard input. Error Code: 5”. This may happen if RPA Bot Client was launched from inside a Windows Remote Desktop Session and the session was disconnected. In order to avoid this, please use the HDRobots extension. Do not disconnect/close the RDP session or persist the session using other techniques (e.g. running VNC).
